上一篇：
(STM32)从零开始的RT-Thread之旅--PWM驱动ST7735调光
本篇使用的驱动来自ST官方提供：
https://github.com/STMicroelectronics/stm32-st7735.git
需要的可以直接git clone下来移植，核心代码无关芯片型号，可移植性很不错！本篇用的ST7735库比官方新添加了一些内容，是开发板卖家提供的，地址：
https://github.com/WeActTC
第一篇中我们打通了SPI，读取到了芯片ID，这一篇只要完善几个接口函数就可以直接使用官方的驱动库了。至于要完善哪几个接口，需要看一下官方驱动库需要哪些函数。
1.添加官方源代码
可以参照我上图的结构把几个源文件添加进去，其中font.h可以在WeAct那个github上找到。
添加完后记得把头文件路径也包含进去。
2.官方库使用方法
在添加完成后，新建lcd相关源文件，比如我的文件结构：
修改 st7735.h 中一处地方：
这个变量在st7735.c中被定义。 怎么使用库如下：
其中ST7735Ctx是库里面定义好的，我们直接使用即可。但是还需要两个变量：

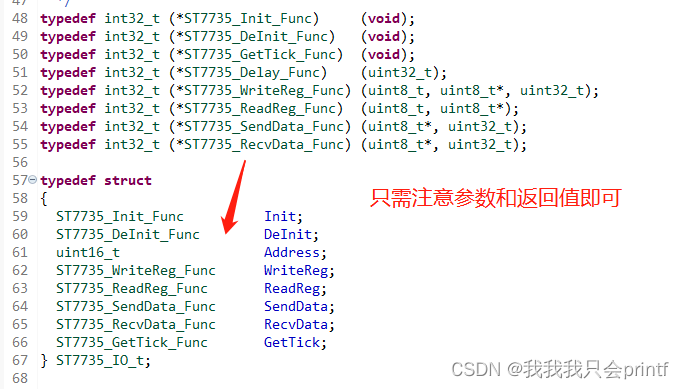

st7735_pObj就是设备驱动实例，实际在屏幕上显示都是操作的它。关键是st7735_pIO这个变量，它负责提供底层接口。它里面包含的一些函数指针正是我们需要完成的。
在上一章的基础上，使用了两套SPI使用方式，如果定义 USE_RTT_SPI ，就是用RTT驱动框架提供的SPI接口函数，如果把它注释掉，则直接使用HAL库的SPI函数，具体实现我会附在后面。
实际我们使用的时候调用的函数是：

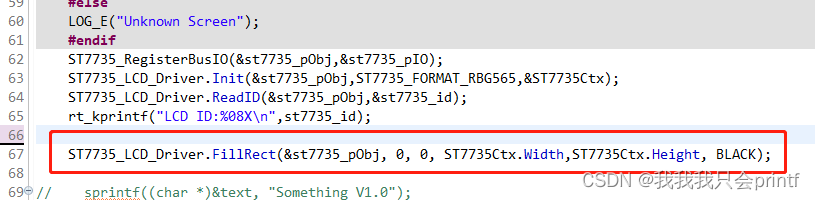

比如要填充整个屏幕为黑色：
附：
mspi.c
/*
* Copyright (c) 2006-2021, RT-Thread Development Team
*
* SPDX-License-Identifier: Apache-2.0
*
* Change Logs:
* Date Author Notes
* 2022-11-14 cx the first version
*/
#include <rtthread.h>
#include <rtdevice.h>
#include <stm32h7xx.h>
#include <drv_spi.h>
#include <mspi.h>
#include "st7735_reg.h"
#include "st7735.h"
#define USE_RTT_SPI
SPI_HandleTypeDef *spi_handle;
#ifdef USE_RTT_SPI
static struct rt_spi_device *spi_lcd;
#define LCD_RD_HIGH rt_pin_write(SPI_RD_PIN_NUM, PIN_HIGH)
#define LCD_RD_LOW rt_pin_write(SPI_RD_PIN_NUM, PIN_LOW)
#else
SPI_HandleTypeDef hspi4;
#define SPI_Drv (&hspi4)
#define LCD_CS_HIGH HAL_GPIO_WritePin(GPIOE,GPIO_PIN_11,GPIO_PIN_SET)
#define LCD_CS_LOW HAL_GPIO_WritePin(GPIOE,GPIO_PIN_11,GPIO_PIN_RESET)
#define LCD_RD_HIGH HAL_GPIO_WritePin(GPIOE,GPIO_PIN_13,GPIO_PIN_SET)
#define LCD_RD_LOW HAL_GPIO_WritePin(GPIOE,GPIO_PIN_13,GPIO_PIN_RESET)
#endif
#ifdef USE_RTT_SPI
int32_t mspi_send_reg(uint8_t reg,uint8_t *data,uint32_t len)
{
struct rt_spi_message msg;
uint32_t remsg = RT_NULL;
msg.send_buf = ®
msg.recv_buf = RT_NULL;
msg.length = 1;
msg.cs_take = 1;
msg.cs_release = 0;
msg.next = RT_NULL;
LCD_RD_LOW;
remsg = (uint32_t)rt_spi_transfer_message(spi_lcd,&msg);
LCD_RD_HIGH;
if(len > 0)
{
msg.send_buf = data;
msg.recv_buf = RT_NULL;
msg.length = len;
msg.cs_take = 0;
msg.cs_release = 1;
msg.next = RT_NULL;
remsg += (uint32_t)rt_spi_transfer_message(spi_lcd,&msg);
}
if(remsg!=RT_NULL)
return -1;
else
return 0;
}
int32_t mspi_read_reg(uint8_t reg,uint8_t *data)
{
struct rt_spi_message msg;
uint32_t remsg = RT_NULL;
uint8_t reg1 = reg;
msg.send_buf = ®1;
msg.recv_buf = RT_NULL;
msg.length = 1;
msg.cs_take = 1;
msg.cs_release = 0;
msg.next = RT_NULL;
LCD_RD_LOW;
remsg = (uint32_t)rt_spi_transfer_message(spi_lcd,&msg);
LCD_RD_HIGH;
if(remsg == 0)
{
msg.send_buf = RT_NULL;
msg.recv_buf = data;
msg.length = 1;
msg.cs_take = 0;
msg.cs_release = 1;
msg.next = RT_NULL;
remsg += (uint32_t)rt_spi_transfer_message(spi_lcd,&msg);
}
if(remsg!=RT_NULL)
return -1;
else
return 0;
}
int32_t mspi_send_data(uint8_t *data,uint32_t len)
{
struct rt_spi_message msg;
msg.send_buf = data;
msg.recv_buf = RT_NULL;
msg.length = len;
msg.cs_take = 1;
msg.cs_release = 1;
msg.next = RT_NULL;
return (uint32_t)rt_spi_transfer_message(spi_lcd,&msg);
}
int32_t mspi_read_data(uint8_t *data,uint32_t len)
{
struct rt_spi_message msg;
msg.send_buf = RT_NULL;
msg.recv_buf = data;
msg.length = len;
msg.cs_take = 1;
msg.cs_release = 1;
msg.next = RT_NULL;
return (uint32_t)rt_spi_transfer_message(spi_lcd,&msg);
}
#else
int32_t mspi_send_reg(uint8_t reg,uint8_t *data,uint32_t len)
{
int32_t result;
LCD_CS_LOW;
LCD_RD_LOW;
result = HAL_SPI_Transmit(SPI_Drv,®,1,100);
LCD_RD_HIGH;
if(len > 0)
result += HAL_SPI_Transmit(SPI_Drv,data,len,500);
LCD_CS_HIGH;
if(result>0){
result = -1;}
else{
result = 0;}
return result;
}
int32_t mspi_read_reg(uint8_t reg,uint8_t *data)
{
int32_t result;
LCD_CS_LOW;
LCD_RD_LOW;
result = HAL_SPI_Transmit(SPI_Drv,®,1,100);
LCD_RD_HIGH;
result += HAL_SPI_Receive(SPI_Drv,data,1,500);
LCD_CS_HIGH;
if(result>0){
result = -1;}
else{
result = 0;}
return result;
}
int32_t mspi_send_data(uint8_t *data,uint32_t len)
{
int32_t result;
LCD_CS_LOW;
//LCD_RD_HIGH;
result =HAL_SPI_Transmit(SPI_Drv,data,len,100);
LCD_CS_HIGH;
if(result>0){
result = -1;}
else{
result = 0;}
return result;
}
int32_t mspi_read_data(uint8_t *data,uint32_t len)
{
int32_t result;
LCD_CS_LOW;
//LCD_RD_HIGH;
result = HAL_SPI_Receive(SPI_Drv,data,len,500);
LCD_CS_HIGH;
if(result>0){
result = -1;}
else{
result = 0;}
return result;
}
#endif
int32_t mspi_get_tick(void)
{
return HAL_GetTick();
}
void mspi_rw_gpio_init(void)
{
#ifdef USE_RTT_SPI
rt_pin_mode(SPI_RD_PIN_NUM, PIN_MODE_OUTPUT);
rt_pin_write(SPI_RD_PIN_NUM, PIN_HIGH);
#else
GPIO_InitTypeDef GPIO_InitStruct = {0};
__HAL_RCC_GPIOE_CLK_ENABLE();
HAL_GPIO_WritePin(GPIOE, GPIO_PIN_11|GPIO_PIN_13, GPIO_PIN_SET);
GPIO_InitStruct.Pin = GPIO_PIN_11|GPIO_PIN_13;
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
GPIO_InitStruct.Pull = GPIO_NOPULL;
GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
HAL_GPIO_Init(GPIOE, &GPIO_InitStruct);
#endif
}
void mspi_init(void)
{
mspi_rw_gpio_init();
#ifdef USE_RTT_SPI
struct rt_spi_configuration cfg;
rt_hw_spi_device_attach("spi4", "spi40", GPIOE, GPIO_PIN_11);
spi_lcd = (struct rt_spi_device *)rt_device_find("spi40");
if(!spi_lcd)
{
rt_kprintf("spi40 can't find\n");
}
else
{
spi_lcd->bus->owner = spi_lcd;
cfg.data_width = 8;
cfg.mode = RT_SPI_MASTER | RT_SPI_3WIRE | RT_SPI_MODE_0 | RT_SPI_MSB;
cfg.max_hz = 12.5 * 1000 * 1000;
rt_spi_configure(spi_lcd, &cfg);
}
//也可以初始化使用框架提供的函数，发送接收使用HAL库函数，操作对象就是下面的 spi_handle
// struct stm32_spi *spi_drv = rt_container_of(spi_lcd->bus, struct stm32_spi, spi_bus);
// spi_handle = &spi_drv->handle;
#else
hspi4.Instance = SPI4;
hspi4.Init.Mode = SPI_MODE_MASTER;
hspi4.Init.Direction = SPI_DIRECTION_1LINE;
hspi4.Init.DataSize = SPI_DATASIZE_8BIT;
hspi4.Init.CLKPolarity = SPI_POLARITY_LOW;
hspi4.Init.CLKPhase = SPI_PHASE_1EDGE;
hspi4.Init.NSS = SPI_NSS_SOFT;
hspi4.Init.BaudRatePrescaler = SPI_BAUDRATEPRESCALER_8;
hspi4.Init.FirstBit = SPI_FIRSTBIT_MSB;
hspi4.Init.TIMode = SPI_TIMODE_DISABLE;
hspi4.Init.CRCCalculation = SPI_CRCCALCULATION_DISABLE;
hspi4.Init.CRCPolynomial = 0x0;
hspi4.Init.NSSPMode = SPI_NSS_PULSE_ENABLE;
hspi4.Init.NSSPolarity = SPI_NSS_POLARITY_LOW;
hspi4.Init.FifoThreshold = SPI_FIFO_THRESHOLD_01DATA;
hspi4.Init.TxCRCInitializationPattern = SPI_CRC_INITIALIZATION_ALL_ZERO_PATTERN;
hspi4.Init.RxCRCInitializationPattern = SPI_CRC_INITIALIZATION_ALL_ZERO_PATTERN;
hspi4.Init.MasterSSIdleness = SPI_MASTER_SS_IDLENESS_00CYCLE;
hspi4.Init.MasterInterDataIdleness = SPI_MASTER_INTERDATA_IDLENESS_00CYCLE;
hspi4.Init.MasterReceiverAutoSusp = SPI_MASTER_RX_AUTOSUSP_DISABLE;
hspi4.Init.MasterKeepIOState = SPI_MASTER_KEEP_IO_STATE_DISABLE;
hspi4.Init.IOSwap = SPI_IO_SWAP_DISABLE;
if (HAL_SPI_Init(&hspi4) != HAL_OK)
{
rt_kprintf("ERROR\n");
}
#endif
}
mlcd.c
/*
* Copyright (c) 2006-2021, RT-Thread Development Team
*
* SPDX-License-Identifier: Apache-2.0
*
* Change Logs:
* Date Author Notes
* 2022-11-15 cx the first version
*/
#include <stdio.h>
#include <rtthread.h>
#include <rtdevice.h>
#define DBG_TAG "mlcd"
#define DBG_LVL DBG_LOG
#include <rtdbg.h>
#include "mpwm.h"
#include "mspi.h"
#include "st7735_reg.h"
#include "st7735.h"
#include "mlcd.h"
#include "font.h"
#include <stm32h7xx.h>
int32_t mlcd_st7735_init(void);
ST7735_IO_t st7735_pIO = {
mlcd_st7735_init,
NULL,
0,
mspi_send_reg,
mspi_read_reg,
mspi_send_data,
mspi_read_data,
mspi_get_tick
};
ST7735_Object_t st7735_pObj;
int32_t mlcd_st7735_init(void)
{
int32_t result = ST7735_OK;
mpwm_init();
mspi_init();
return result;
}
int mlcd_init(void)
{
uint32_t st7735_id;
uint8_t text[50];
#ifdef TFT96
ST7735Ctx.Orientation = ST7735_ORIENTATION_LANDSCAPE_ROT180;
ST7735Ctx.Panel = HannStar_Panel;
ST7735Ctx.Type = ST7735_0_9_inch_screen;
#elif TFT18
ST7735Ctx.Orientation = ST7735_ORIENTATION_PORTRAIT;
ST7735Ctx.Panel = BOE_Panel;
ST7735Ctx.Type = ST7735_1_8_inch_screen;
#else
LOG_E("Unknown Screen");
#endif
ST7735_RegisterBusIO(&st7735_pObj,&st7735_pIO);
ST7735_LCD_Driver.Init(&st7735_pObj,ST7735_FORMAT_RBG565,&ST7735Ctx);
ST7735_LCD_Driver.ReadID(&st7735_pObj,&st7735_id);
rt_kprintf("LCD ID:%08X\n",st7735_id);
ST7735_LCD_Driver.FillRect(&st7735_pObj, 0, 0, ST7735Ctx.Width,ST7735Ctx.Height, BLACK);
sprintf((char *)&text, "Something V1.0");
LCD_ShowString(4, 4, ST7735Ctx.Width, 16, 16, text);
return 0;
}
uint16_t POINT_COLOR=0xFFFF; //画笔颜色
uint16_t BACK_COLOR=BLACK; //背景色
//在指定位置显示一个字符
//x,y:起始坐标
//num:要显示的字符:" "--->"~"
//size:字体大小 12/16
//mode:叠加方式(1)还是非叠加方式(0)
void LCD_ShowChar(uint16_t x,uint16_t y,uint8_t num,uint8_t size,uint8_t mode)
{
uint8_t temp,t1,t;
uint16_t y0=y;
uint16_t x0=x;
uint16_t colortemp=POINT_COLOR;
uint32_t h,w;
uint16_t write[size][size==12?6:8];
uint16_t count;
ST7735_GetXSize(&st7735_pObj,&w);
ST7735_GetYSize(&st7735_pObj,&h);
//设置窗口
num=num-' ';//得到偏移后的值
count = 0;
if(!mode) //非叠加方式
{
for(t=0;t<size;t++)
{
if(size==12)temp=asc2_1206[num][t]; //调用1206字体
else temp=asc2_1608[num][t]; //调用1608字体
for(t1=0;t1<8;t1++)
{
if(temp&0x80)
POINT_COLOR=(colortemp&0xFF)<<8|colortemp>>8;
else
POINT_COLOR=(BACK_COLOR&0xFF)<<8|BACK_COLOR>>8;
write[count][t/2]=POINT_COLOR;
count ++;
if(count >= size) count =0;
temp<<=1;
y++;
if(y>=h){POINT_COLOR=colortemp;return;}//超区域了
if((y-y0)==size)
{
y=y0;
x++;
if(x>=w){POINT_COLOR=colortemp;return;}//超区域了
break;
}
}
}
}
else//叠加方式
{
for(t=0;t<size;t++)
{
if(size==12)temp=asc2_1206[num][t]; //调用1206字体
else temp=asc2_1608[num][t]; //调用1608字体
for(t1=0;t1<8;t1++)
{
if(temp&0x80)
write[count][t/2]=(POINT_COLOR&0xFF)<<8|POINT_COLOR>>8;
count ++;
if(count >= size) count =0;
temp<<=1;
y++;
if(y>=h){POINT_COLOR=colortemp;return;}//超区域了
if((y-y0)==size)
{
y=y0;
x++;
if(x>=w){POINT_COLOR=colortemp;return;}//超区域了
break;
}
}
}
}
ST7735_FillRGBRect(&st7735_pObj,x0,y0,(uint8_t *)&write,size==12?6:8,size);
POINT_COLOR=colortemp;
}
//显示字符串
//x,y:起点坐标
//width,height:区域大小
//size:字体大小
//*p:字符串起始地址
void LCD_ShowString(uint16_t x,uint16_t y,uint16_t width,uint16_t height,uint8_t size,uint8_t *p)
{
uint8_t x0=x;
width+=x;
height+=y;
while((*p<='~')&&(*p>=' '))//判断是不是非法字符!
{
if(x>=width){x=x0;y+=size;}
if(y>=height)break;//退出
LCD_ShowChar(x,y,*p,size,0);
x+=size/2;
p++;
}
}
